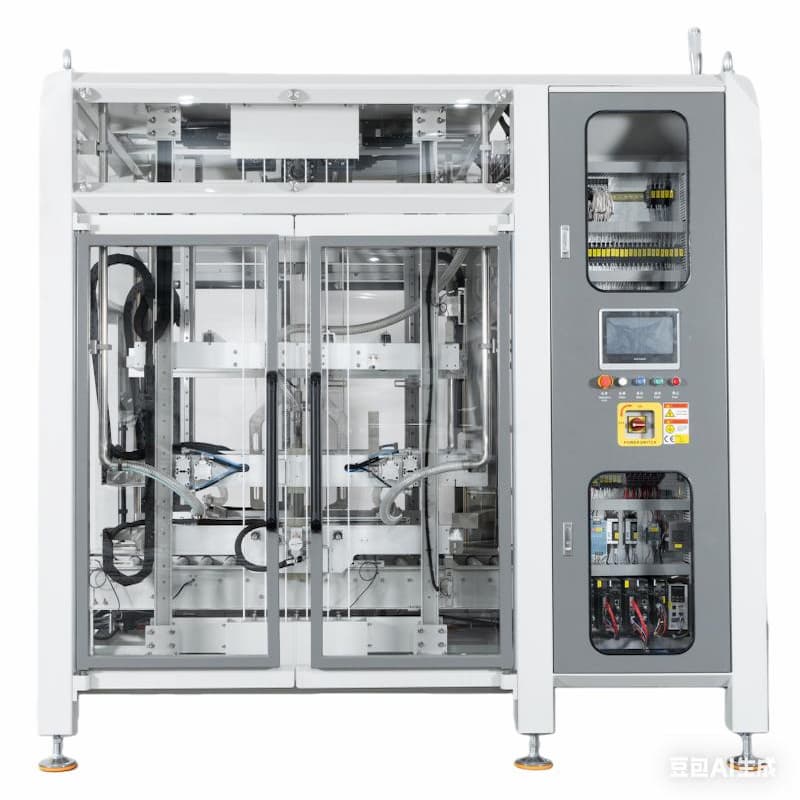

The Automatic Bag Lifting and Sealing Machine utilizes precise multi-servo control to fully automate carton feeding, positioning, bag lifting, and sealing processes. Bag lifting and sealing are perfectly synchronized in a single step, ensuring continuous operation without downtime, high stability, and maximum efficiency.
Item No :
SM-LS40Order(MOQ) :
1SETShipping Port :
Any port of China
Introduction
This Automatic Bag Lifting and Sealing Machine is designed to automatically lift and seal the inner bag of a carton, making the packaging process faster, cleaner, and more efficient. With precise servo control, the machine automatically handles carton feeding, positioning, bag lifting, and sealing in one continuous process, with no need for manual operation. It is compatible with PE and PO films and is suitable for food, edible oils, fats, seasonings, biscuits, chemicals, powders, liquids, and other products. The machine can also connect with an Automatic Carton Bagging Machine and Automatic Carton Sealer to form a complete carton packaging line, from inner bag insertion to bag sealing and final carton sealing. This helps reduce labor costs, improve packaging efficiency, and achieve stable and consistent production.
Technical Parameters
| Items | Technical Parameters |
| Bag Lifting Speed | 4-10 cartons/min |
| Carton Size Range | L300–600mm × W200–500mm × H200–500mm |
| Power Supply | 380V 50Hz 3-Phase |
| Power Rating | 6KW |
| Air Presure | 0.6–0.8 MPa |
| Table Height | 600 mm |
| Machine Dimensions | L2450mm × W1800mm × H2350mm |
| Machine Weight | Approx. 1620 kg |
Advantages
1.Ultra-Thin Film Compatibility: Supports PE/PO films with smooth, wrinkle-free and tear-free bag lifting and sealing.
2.Strong & Neat Sealing: Dual sealing lines provide firm, durable, and clean seals, with straight or M-shaped patterns available.
3.Fast & Precise Control: Multi-axis servo synchronization and EtherCAT control ensure fast response, smooth operation, and high production efficiency.
4.Wide Carton Compatibility: Supports mainstream carton sizes with quick changeover, covering over 90% of packaging needs.
5.Multiple Safety Protections: Safety door interlocks and emergency stop functions ensure safe and reliable operation.
6.Easy Operation & Maintenance: Tool-free adjustment and a user-friendly interface make operation and troubleshooting simple.
7.Food-Grade Hygienic Design: Easy-to-clean structure with minimal blind spots, suitable for food and hygienic packaging applications.
8.Durable & Smart: Heavy-duty construction ensures long service life, while MES connectivity enables easy integration with automated packaging lines.
The Automatic Bag Lifting and Sealing Machine utilizes precise multi-servo control to fully automate carton feeding, positioning, bag lifting, and sealing processes. Bag lifting and sealing are perfectly synchronized in a single step, ensuring continuous operation without downtime, high stability, and maximum efficiency.
Read More
The Automatic Bag Lifting and Sealing Machine features multi-servo precise control to automatically perform carton feeding, positioning, bag lifting, and sealing. The bag lifting and sealing operations are synchronously formed in one continuous process without requiring machine shutdown. This machine seamlessly integrates with upstream Automatic Carton bag Inserters and downstream Automatic Carton Sealers, enabling a fully unmanned automated packaging line. Designed specifically for PE film materials, it is widely applicable across industries including chemicals, powders, solids, semi-solids, liquids, foods, solid oils/greases, edible oils, condiments, biscuits, fresh fruits, and more.
