The Automatic Carton Bag Inserter is designed to automatically place a plastic liner bag inside a carton, helping reduce manual work and improve packaging efficiency. With a servo-controlled system, the machine automatically completes the main packaging steps, including carton feeding, positioning, film feeding, bag inserting, film cutting, bag folding and carton discharge. The whole process runs continuously without frequent stops. With a working speed of 6–15 cartons per minute, the machine provides stable and efficient operation for continuous production.
Item No :
SM-CBI40IOrder(MOQ) :
1SETShipping Port :

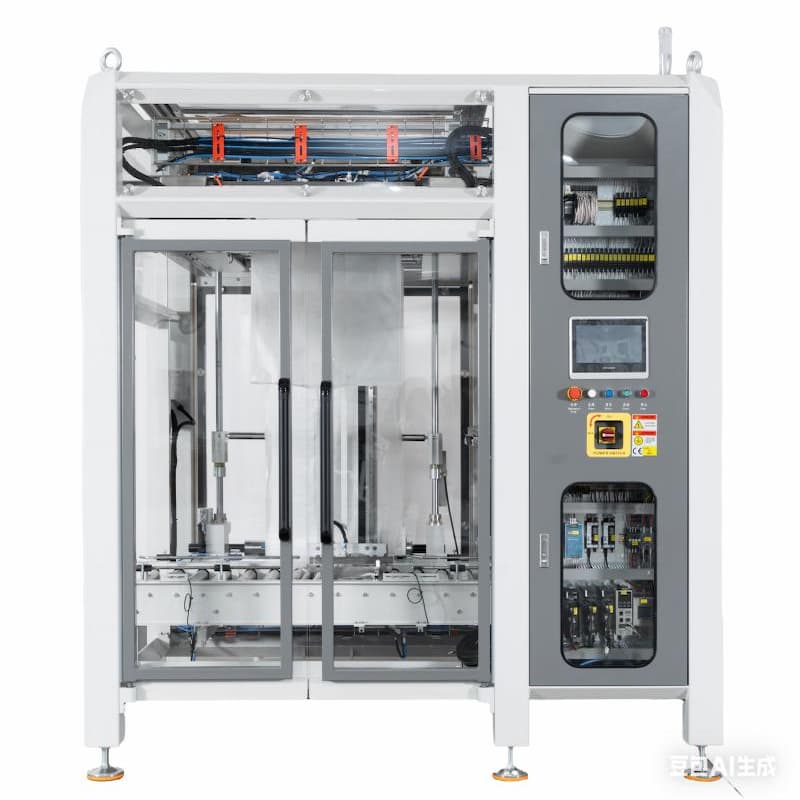

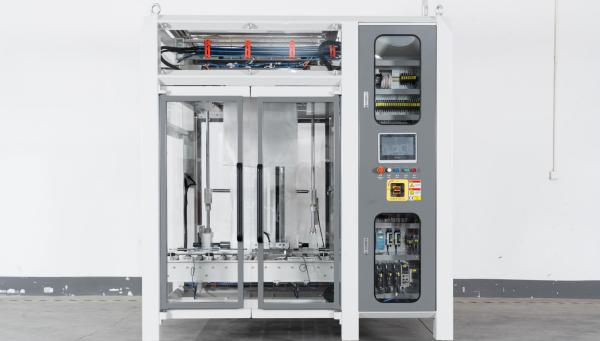

Any port of ChinaAutomatic Carton Bag Inserter
Automatically insert and fold plastic liners inside cartons — fast, clean and consistent.
6–15 cartons/min | PE / PO Film | Servo Control | Continuous Operation
Introduction
The Automatic Carton Bag Inserter is designed to automatically place a plastic liner bag inside a carton, helping reduce manual work and improve packaging efficiency. With a servo-controlled system, the machine automatically completes the main packaging steps, including carton feeding, positioning, film feeding, bag inserting, film cutting, bag folding and carton discharge. The whole process runs continuously without frequent stops. With a working speed of 6–15 cartons per minute, the machine provides stable and efficient operation for continuous production.
The carton bag inserter can be easily connected with an automatic carton erector at the front and an automatic bag sealing machine, carton sealer or other packing equipment at the back, making it easy to build a complete automated end-of-line packaging line. The machine is suitable for PE and PO film and can be used for inner bag packaging in various industries, including:
Chemical products – solid, semi-solid and liquid products
Food products – solid oils, fats, edible oils, sauces, seasonings, biscuits and other products
By replacing manual bag insertion and folding, the machine helps improve production efficiency, reduce labor requirements and create a more stable and cost-effective packaging process.
Technical Parameters
| Items | Technical Parameters |
| Bag Lifting Speed | 4-10 cartons/min |
| Carton Size Range | L300–600mm × W200–500mm × H200–500mm |
| Power Supply | 80V 50Hz 3-Phase |
| Power Rating | 6KW |
| Air Presure | 0.6–0.8 MPa |
| Table Height | 600 mm |
| Machine Dimensions | L2450mm × W1800mm × H2350mm |
| Machine Weight | Approx. 1620 kg |

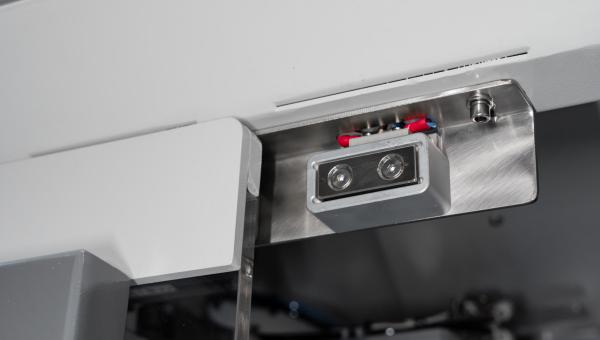

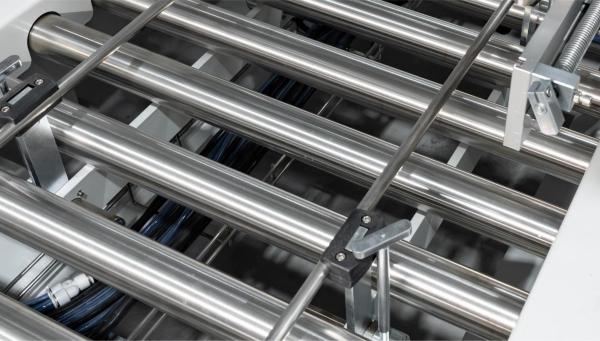

Machine Details
Advantages
0.01 mm Ultra-Thin Film
Smooth bag insertion without wrinkles or damage.

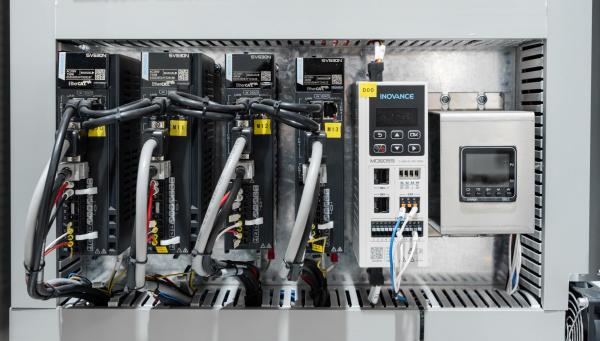

Servo Precision
Accurate and smooth bag positioning.
Fast & Stable
Designed for continuous, reliable operation.

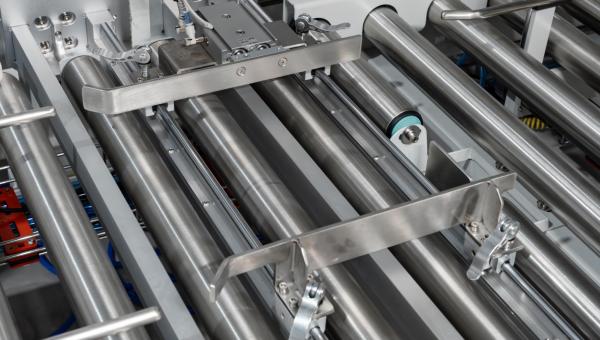

Easy Changeover
Quick adjustment for different carton sizes.
Safe Operation
Multiple safety features for operators and equipment.

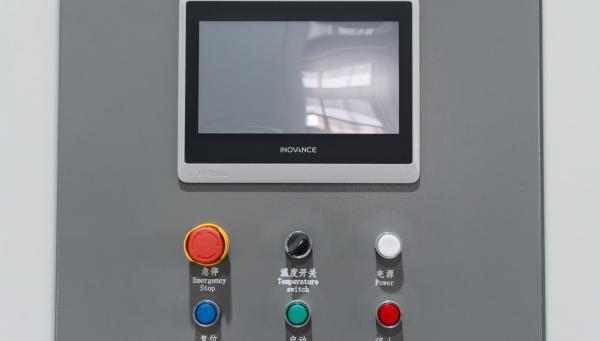

Easy to Use
Simple controls and tool-free adjustment.
Easy to Clean
Open, hygienic design for quick cleaning.

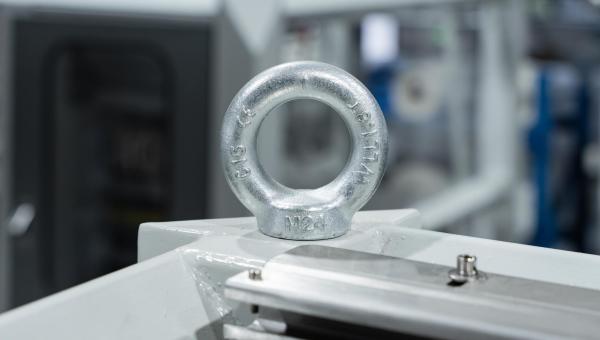

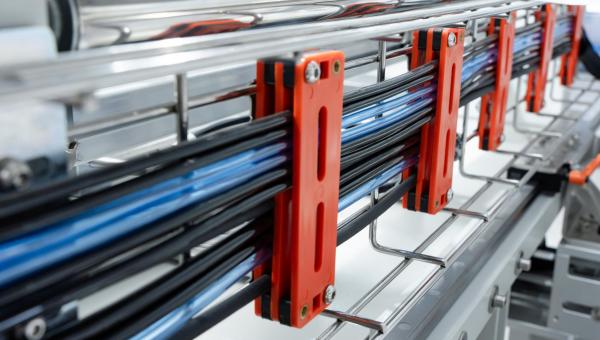

Built to Last
Heavy-duty frame and easy line integration.
FAQ
The Automatic Carton Bag Inserter Machine is designed for PE and PO film and can handle film as thin as 0.01 mm, depending on the film material and bag size.
The machine can run at 6–15 cartons per minute, depending on the carton size, bag size, product and packaging process.
Yes. The machine can be adjusted for different carton and bag sizes, making it easy to switch between different packaging requirements.
Yes. We can customize the machine based on your carton dimensions, bag size, film material, product type and required production speed. We recommend testing your actual cartons and bags before finalizing the machine.
The Automatic Carton Bag Inserter is designed to automatically place a plastic liner bag inside a carton, helping reduce manual work and improve packaging efficiency. With a servo-controlled system, the machine automatically completes the main packaging steps, including carton feeding, positioning, film feeding, bag inserting, film cutting, bag folding and carton discharge. The whole process runs continuously without frequent stops. With a working speed of 6–15 cartons per minute, the machine provides stable and efficient operation for continuous production.
Read More

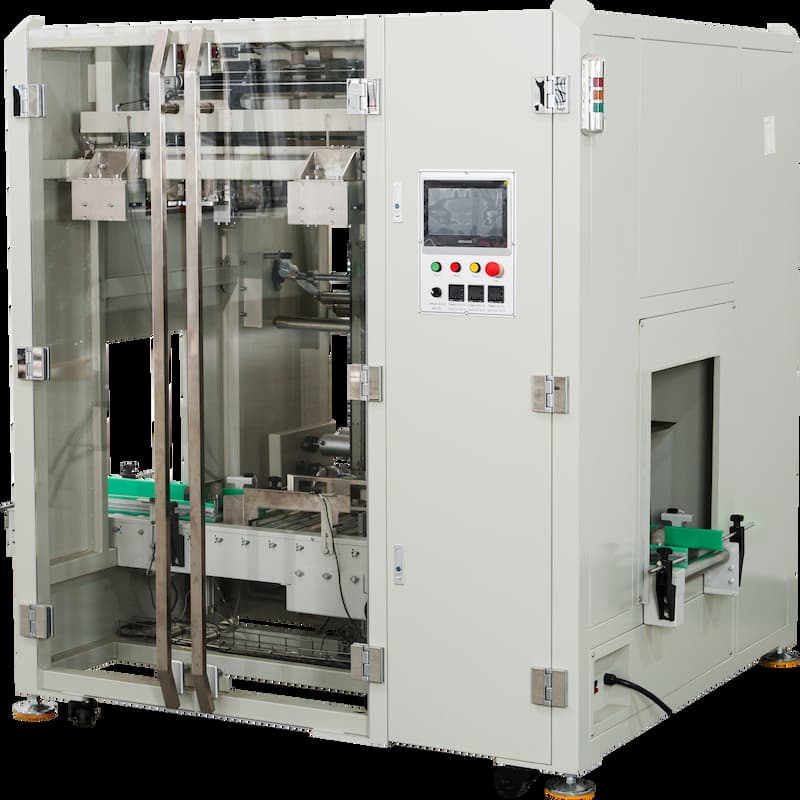

The Automatic Carton Bag Inserting Machine uses multi-servo control to automatically feed and position cartons, feed PE film, insert bags, cut the film, fold the edges, and discharge cartons. The entire process is completed in one cycle without stopping the machine, helping improve packaging efficiency and reduce manual labor. This Automatic Carton Liner Insertion Machine can be easily integrated with automatic case erectors, case packers, bag lifting and sealing machines, and case sealers to create a fully automated packaging line. Designed for PE film bag insertion, this machine is suitable for a wide range of products, including chemicals, powders, solids, semi-solids, liquids, food products, fats and oils, seasonings, biscuits, and fresh fruits. It provides an efficient solution for automatic PE liner insertion in cartons across various industries.
